Implementing Cisco Service Provider Advanced Routing Solutions (300-510 SPRI) Certification Path
Implementing Cisco Service Provider Advanced Routing Solutions (300-510 SPRI) exam is affiliated with the CCNP Service Provider and Cisco Accredited Professional-Service Provider VPN Services Implementation certifications. This is the official prerequisite for this exam. However, the course, Integrating VPN Services from Cisco Service Provider, allows applicants to prepare for this exam and is highly recommended.
NEW QUESTION 41

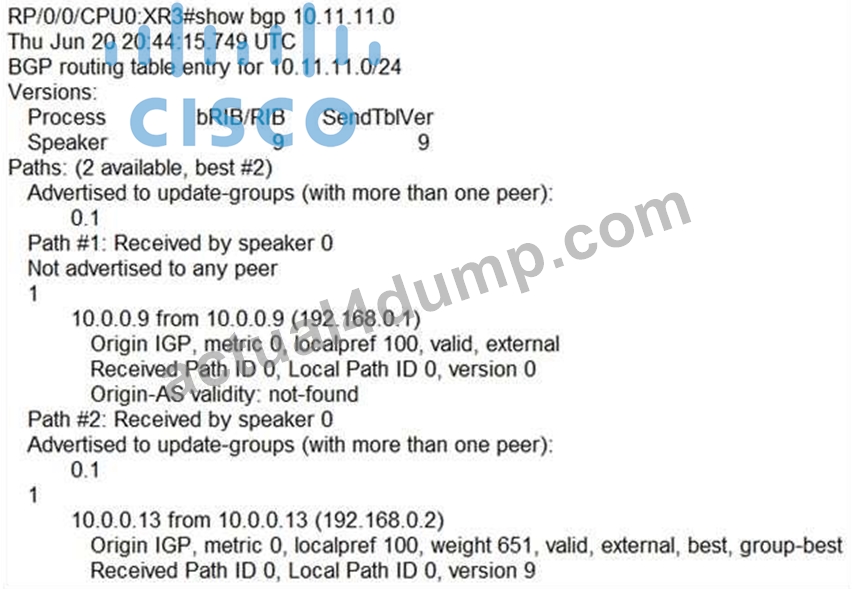

Refer to the exhibit.
A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of
10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?
- A. lower local preference on the prefix coming from 192.168.0.2
- B. weight of 100 on the prefix coming from 192.168.0.1
- C. weight of 0 on the prefix coming from 192.168.0.2
- D. higher local preference on the prefix coming from 192.168.0.1
Answer: C
NEW QUESTION 42
Which statement about enabling segment routing for IGPs is true?
- A. Segment routing must first be enabled under then routing process and then globally
- B. Segment routing can be enabled only under the routing process
- C. Segment routing must first be enabled globally and then under the routing process
- D. Segment routing can be enabled only globally
Answer: C
Explanation:
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/seg_routing/configuration/xe-16-6/segrt-xe-16-6- book/sr-ospfv2-node-sid.html
NEW QUESTION 43
DRAG DROP

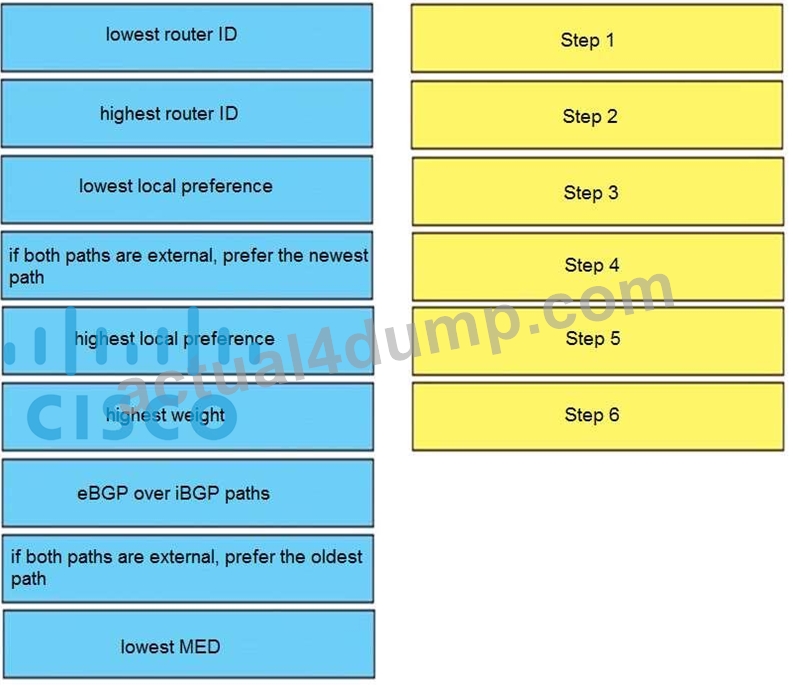

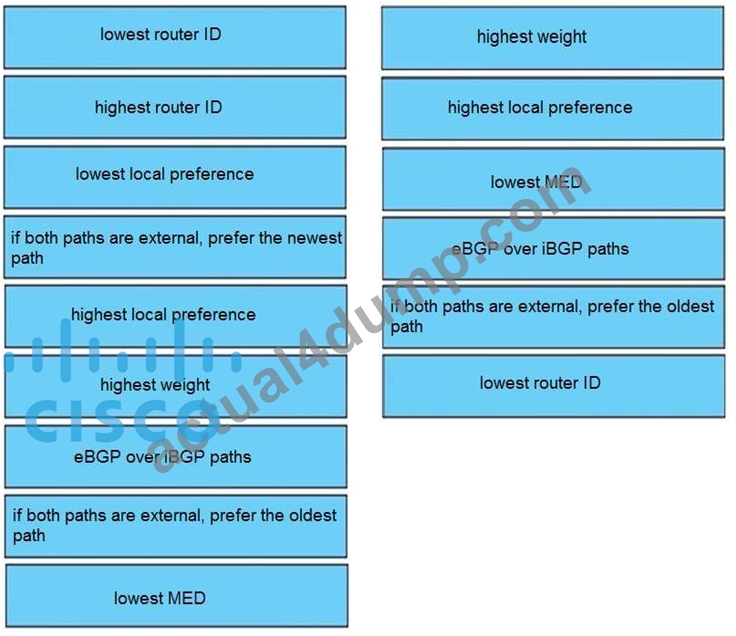

Drag and drop the attributes for the BGP route selection on the left into the correct order on the right. Not all options are used.
Select and Place:
Answer:
Explanation:
Explanation/Reference: https://www.cisco.com/c/en/us/support/docs/ip/border-gateway-protocol-bgp/13753-25.html
NEW QUESTION 44

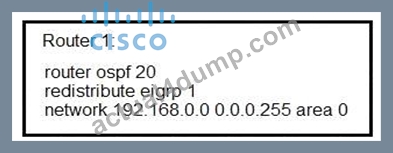

Refer to the exhibit.
An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?
- A. Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.
- B. Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.
- C. Router 1 must have the keyword included in the redistribution command for all EIGRP routes to be redistributed.
- D. Router 1 must have the keyword 1 included in the redistribution command for all EIGRP routes to be redistributed.
Answer: A
NEW QUESTION 45

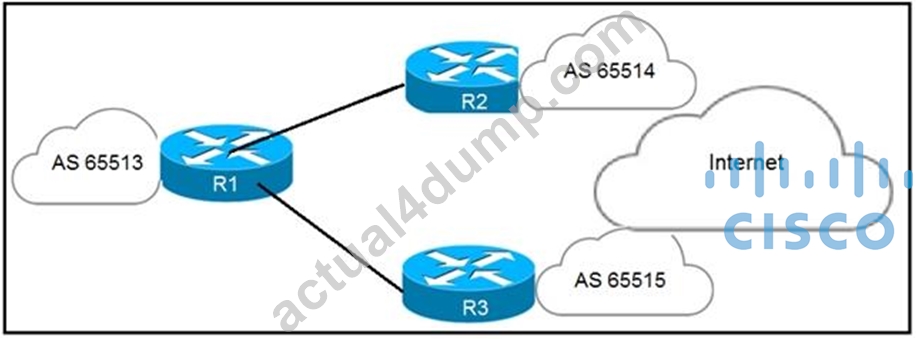

Refer to the exhibit.

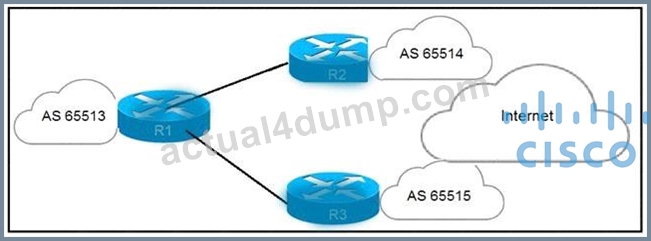

An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?
- A. The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.
- B. The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.
- C. The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.
- D. The MED attribute can be applied on R2 to influence R1 to use it as the primary path.
Answer: B
NEW QUESTION 46

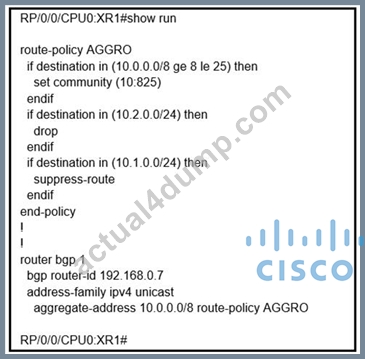

Refer to the exhibit.
A network operator is working to filter routes from being advertised that are covered under an aggregate announcement. The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate. Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?
- A. Set each specific route in the AGGRO policy to drop instead of suppress-route
- B. Set each specific route in the AGGRO policy to remove instead of suppress-route
- C. Filter the routes on the receiving router
- D. Configure the summary-only keyword on the aggregate command
Answer: D
NEW QUESTION 47
In a PIM-SM environment, which mechanism determines the traffic that a receiver receives?
- A. The receiver explicitly requests traffic from a single source, which responds by forwarding all traffic.
- B. The RP on the shared tree floods traffic out of all PIM configured interfaces.
- C. The receiver explicitly requests traffic from each desired source, which responds by sending all traffic.
- D. The receiver explicitly requests its desired traffic from the RP on the shared tree.
Answer: C
NEW QUESTION 48
Refer to the exhibit.
Which task must you perform on interface g1/0/0 to complete the SSM implementation?
- A. disable IGMP
- B. configure OSPFv3
- C. enable CDP
- D. configure IGMPv3
Answer: D
NEW QUESTION 49
Refer to the exhibit.

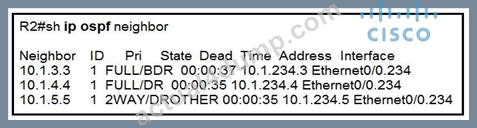

Why is neighbor 10.1.5.5 stuck in "2WAY" state?
- A. OSPF parameters (Area ID or hello interval) are mismatched between R2 and 10.1.5.5
- B. OSPF authentication has failed between R2 and 10.1.5.5
- C. Router ID 10.1.5.5 is not reachable from R2
- D. It is an expected behavior when OSPF network type is broadcast
Answer: D
NEW QUESTION 50
Which statement about enabling segment routing for IGPs is true?
- A. Segment routing must first be enabled under then routing process and then globally
- B. Segment routing can be enabled only under the routing process
- C. Segment routing must first be enabled globally and then under the routing process
- D. Segment routing can be enabled only globally
Answer: C
Explanation:
Reference:
book/sr-ospfv2-node-sid.html
NEW QUESTION 51
A network engineer is troubleshooting OSPF multiareA. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?
- A. DR support for topology management
- B. hierarchical CLI
- C. show ip ospf topology command
- D. routing process enabled by default on all interfaces
Answer: B
NEW QUESTION 52
Which difference should be considered when intradomain or interdomain multicast routing is implemented?
- A. Interdomain multicast routing relies on PIM-DM and intradomain multicast routing relies on PIM-SM.
- B. A network uses intradomain multicast routing without interdomain routing but networks that use interdomain multicast routing must also apply intradomain routing
- C. interdomain multicast routing uses BIDR-PIM to establish neighbor relationships between AS and interdomain multicast routing uses MSDP
- D. Interdomain multicast routing requires an IS-IS or OSPF neighbor relationship between the domains but intradomain multicast routing requires only BGP
Answer: B
NEW QUESTION 53

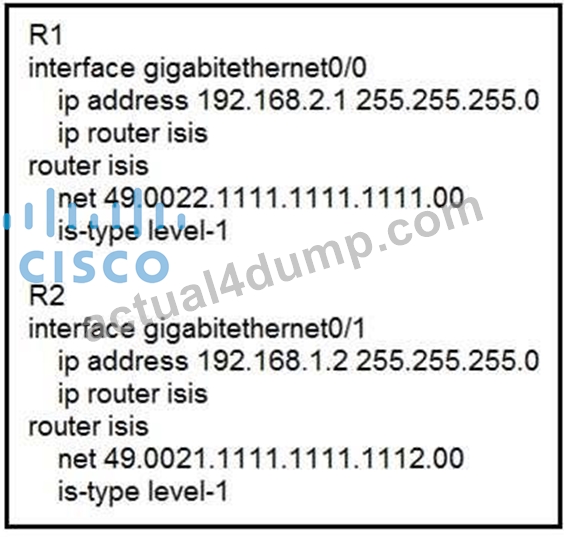

A network consultant is troubleshooting IS-IS instances to identify why a routing domains is having communication problems between the two instances. Which description of the possible cause of issues in the routing domain is true?
- A. The same interface cannot be advertised in two different IS-IS instances
- B. The configured IS-IS NSEL value is not allowing the routing systems to establish a neighborship
- C. The IS-IS "ISP" and "ISP2" instances are unrelated and unable to intercommunicate
- D. The interface mode ip router is-is
Answer: A
NEW QUESTION 54
Refer to the exhibit.
An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3. Which mechanism should the engineer apply in order to steer the traffic correctly?
- A. The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.
- B. The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.
- C. The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.
- D. The MED attribute can be applied on R2 to influence R1 to use it as the primary path.
Answer: B
NEW QUESTION 55

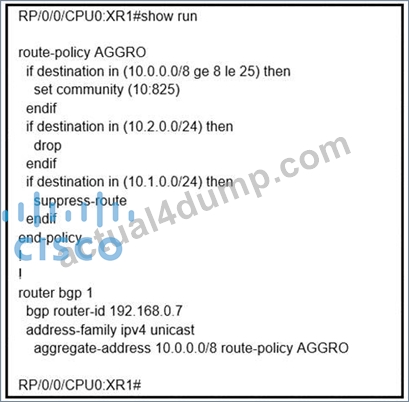

Refer to the exhibit.
A network operator is working to filter routes from being advertised that are covered under an aggregate announcement. The receiving router of the aggregate announcement block is still getting some of the more specific routes plus the aggregate. Which configuration change ensures that only the aggregate is announced now and in the future if other networks are to be added?
- A. Set each specific route in the AGGRO policy to drop instead of suppress-route
- B. Set each specific route in the AGGRO policy to remove instead of suppress-route
- C. Filter the routes on the receiving router
- D. Configure the summary-only keyword on the aggregate command
Answer: D
NEW QUESTION 56
Refer to the exhibit.

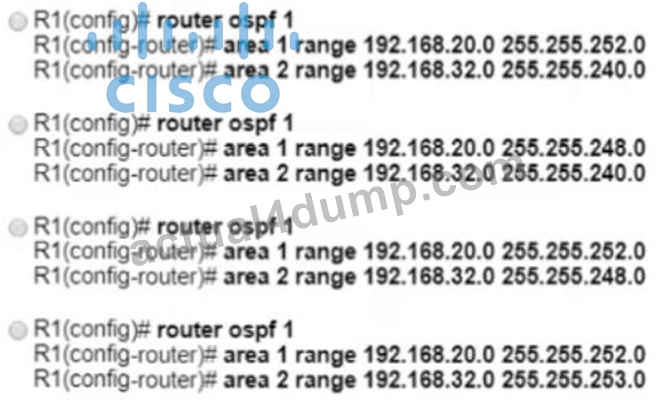

An engineer applied the summarization configuration on R1 for four networks (192.168.20.0/24 to 192.168.23.0/24) in area 1 and eight networks (192.168.32.0/24 to 192.168.39.0/24) in area 2 to stop the flooding of all the customer routes. While checking the routing table of R2, the engineer noticed that R1 is still sending only specific routes to R2. Which configuration should the engineer apply on R1 to summarize routes?
- A. Option C
- B. Option D
- C. Option B
- D. Option A
Answer: A
NEW QUESTION 57

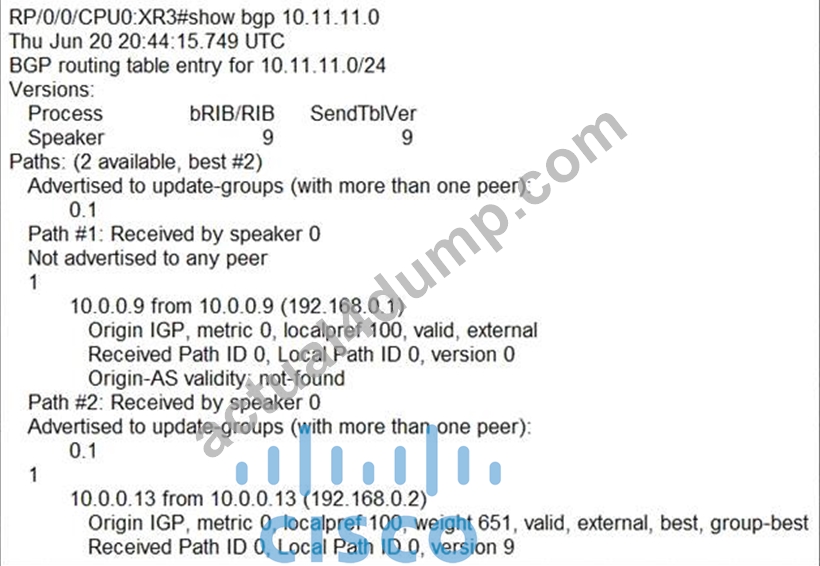

Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of
10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?
- A. lower local preference on the prefix coming from 192.168.0.2
- B. weight of 100 on the prefix coming from 192.168.0.1
- C. weight of 0 on the prefix coming from 192.168.0.2
- D. higher local preference on the prefix coming from 192.168.0.1
Answer: D
NEW QUESTION 58
Refer to the exhibit.

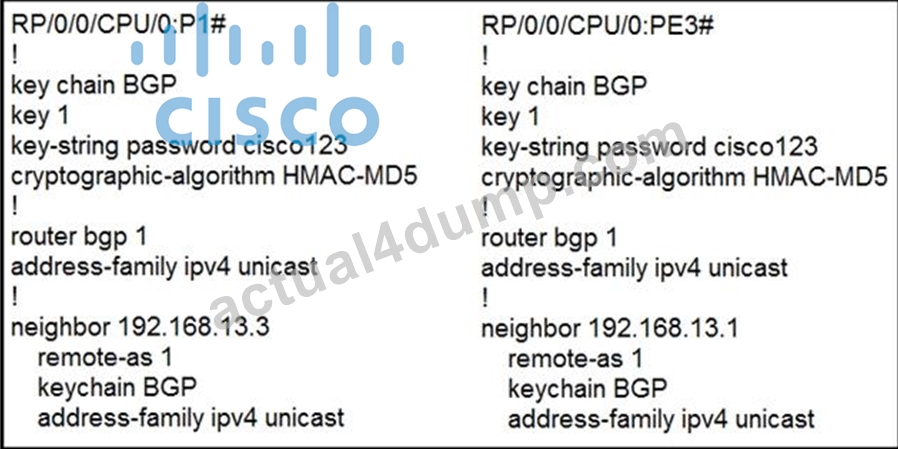

P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which action fixes the issue?
- A. Change HMAC-MD5 to MD5
- B. Change HMAC-MD5 to HMAC-SHA1-12
- C. Configure the send and accept lifetime under key 1
- D. Change HMAC-MD5 to HMAC-SHA1-20
Answer: C
NEW QUESTION 59

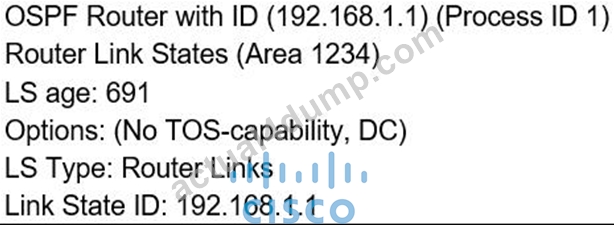

Refer to the exhibit.
Which LSA type is indicated by this router output?
- A. type 1 LSA
- B. type 3 LSA
- C. type 4 LSA
- D. type 2 LSA
Answer: A
NEW QUESTION 60
For which reason can two devices fail to establish an OSPF neighbor relationship?
- A. The two devices have different process IDs
- B. The two devices have different router IDs
- C. The two devices have different network types
- D. The two devices have the same area ID
Answer: C
NEW QUESTION 61
Refer to the exhibit. Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)
- A. The two routers are in the same area
- B. The two routers are in different areas
- C. The two routers have the same network ID
- D. The two routers have password mismatch issues
- E. The two routers are in different subnets
Answer: B,E
NEW QUESTION 62
......
How to book the Implementing Cisco Service Provider Advanced Routing Solutions (300-510 SPRI) Exam
Typically, up to six weeks in advance and as late as the same day, you can schedule an exam. You must follow these steps to participate in the Implementing Cisco Service Provider Advanced Routing Solutions 300-510 SPRI exam test:
- Step 1: Visit the Pearson VUE website by clicking here
- Step 3: Login or create an account
- Step 3: Enter the exam number i.e., 300-510
- Step 3: Follow the details on the website
- Step 4: Pay for your exam via credit card or exam vouchers
